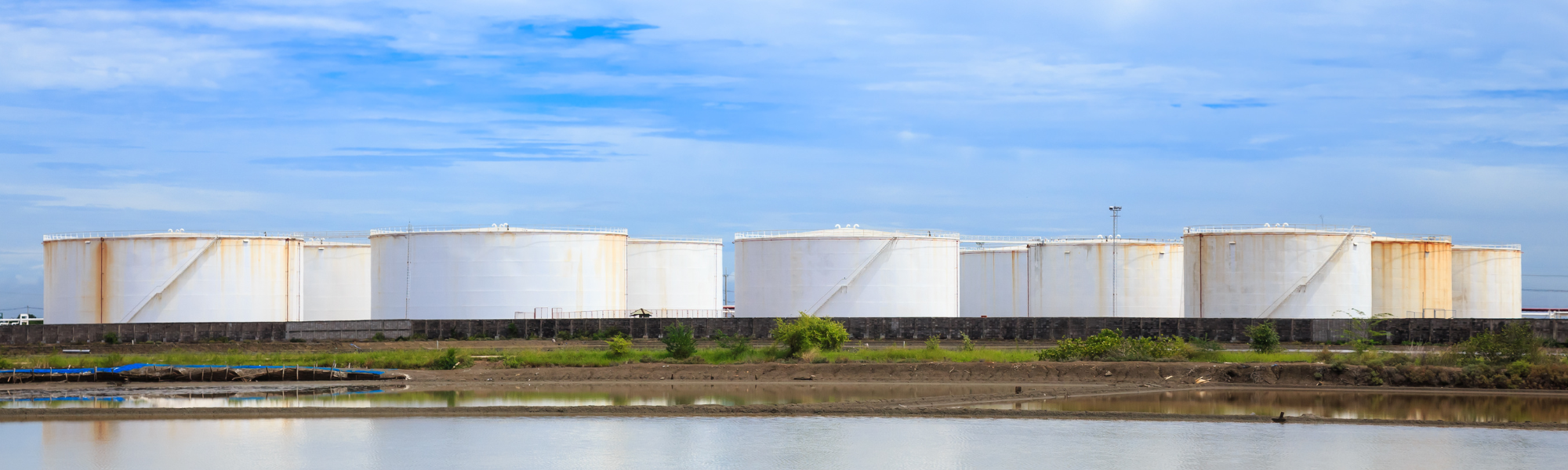

Tank Storage Valves

Coral Valves manufacture, distribute and support a wide range of gate, globe, check, safety, ball, plug and butterfly valves for the Oil & Gas Tank Storage industry, having supplied valves for even the most critical applications.

Valve & Actuator Range

Butterfly Valves

  • Size Range: DN40 - DN1200

    Pressure: PN10 - PN16

    Configuration: Rubber Lined (Replaceable) / PTFE

    Construction: Concentric / Double Eccentric

    Materials: Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel

Gate Valves

  • Size Range: 1/4" - 48"

    Pressure: Class 150 - Class 2500

    Construction: Bolted Bonnet / Pressure Seal

    Materials: Cast Iron / Carbon Steel / Stainless Steel Alloys

Globe Valves

  • Size Range: 1/4" - 48"

    Pressure: Class 150 - Class 2500

    Construction: Bolted Bonnet / Pressure Seal

    Materials: Cast Iron / Carbon Steel / Stainless Steel Alloys

Check Valves

  • Size Range: 1/4" - 48"

    Pressure: Class 150 - Class 2500

    Construction: Bolted Bonnet / Pressure Seal

    Materials: Cast Iron / Carbon Steel / Stainless Steel Alloys

Ball Valves

  • Size Range: 1/4" - 24"

    Pressure: Class 150 - Class 2500

    Configuration: 2 Way / 3 Way / 4 Way / Top Entry

    Construction: Floating / Trunnion Mounted

    Materials: Carbon Steel/ Low Carbon Steel / Stainless Steel Alloys

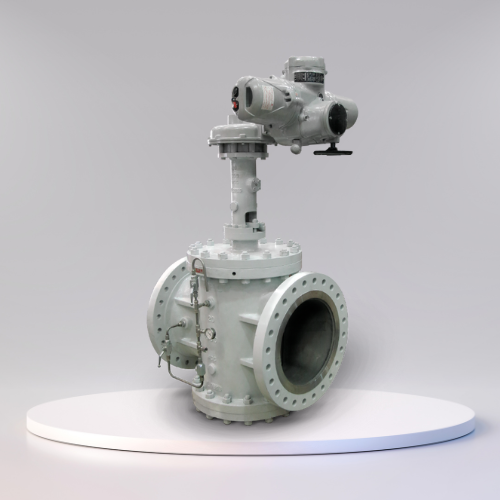

DBB Expanding Plug Valves

  • Size Range: 2" - 24"

    Pressure: Class 150 - Class 600

    Configuration: Full Bore / Reduced Bore

    End Connections: Flanged / Buttweld

    Materials: Carbon Steel / Duplex / Super Duplex / Aluminium Bronze / Stainless Steel Alloys

Globe Control Valves

  • Size Range: 1/2" - 12" - Larger sizes available on request

    Pressure: PN16-PN40 / ANSI Class 150 Class 300

    Pneumatic Control Valves for Liquids, Gases and Steam

    Materials: Carbon Steel / Low Carbon Steel / Stainless Steel Alloys

Safety Valves

  • Size Range: 1/2" x 2" - 12" x 16"

    Pressure: Class 150 - Class 2500

    Design to ASME VIII / API STD 526 / ISO 4126

    Configuration: Conventional / Bellows Sealed

    Construction: Full Lift / Semi Lift

    Materials: Carbon Steel / Low Carbon Steel / Stainless Steel Alloys

Pneumatic Actuators

  • Rack & Pinion / Scotch Yoke Design

    Torque: 3 N.M - 700,000 N.M

    Configuration: Double Acting / Spring Return

    Construction: Hard Anodized Aluminium Body & Carbon+ ENP Pinion

    Coatings: Standard Anodized or C5M for harsh environments

Hydrant Valves

  • Size Range: DN50 - DN65

    Pressure: Class 150 / PN16

    Construction: Straight Pattern / Oblique Pattern / 90 Degree Angle Pattern

    Materials: Cast Iron / Bronze

    Hose Connections: Threaded / Instantaneous Coupling / Storz Coupling

Smart Valve Positioners

  • Smart & Analogue Type

    Linear / Rotary Valve Positioners

    HART / PROFIBUS / FIELDBUS Capable on order

    Construction: Standard / ATEX Rater Aluminium Housing

Automation Accessories

  • Mechanical & Proximity Switchboxes, Brackets & Couplings, Bespoke Pipework, Lock up Valves, Solenoid Valves and Air Filter Regulators.

The Coral Valves Commitment.

  • Precision Solutions for Tank Farm Challenges.

    Supplying top-quality manually operated and automated isolation and control valves is our forte. We understand the unique demands of the tank farm and storage industries, where precision and reliability are paramount. Our valves are engineered to excel in these applications, overcoming challenges such as volatile product handling, varying temperatures, and complex fluid transfer systems. Whether it's ensuring leak-proof seals, maintaining flow control, or adapting to extreme conditions, our valves are built to exceed expectations.

  • Tackling Fluid Dynamics.

    In the tank farm and storage industries, fluid dynamics pose intricate challenges. From managing multiple product types and their varying viscosities to controlling flow rates with precision, the demand for versatile valves is constant. At Coral Valves, we rise to these challenges with a range of valves capable of handling diverse fluids and maintaining precise control. Our automated valves are equipped with advanced technology for seamless integration into tank farm automation systems, enhancing operational efficiency and safety.

  • Enhancing Safety and Efficiency.

    Safety and efficiency are non-negotiable in tank farm and storage operations. Our valves play a pivotal role in achieving both objectives. They are designed to minimize the risk of spills, overflows, and emissions, ensuring the utmost safety for personnel and the environment. Simultaneously, our valves optimize flow control, helping to reduce operational downtime and enhance productivity. At Coral Valves, we're dedicated to providing comprehensive valve solutions that not only meet industry standards but also empower tank farm and storage facilities to simplify and excel in their daily operations.
