Marine Valves

Coral Valves specialise in marine valves and related technical supplies to the offshore, shipping industries, for new builds and vessel repair. DIN, JIS and ANSI Standards can be supplied with all class body inspections and approvals to EN10204 3.1 or 3.2. Our strategic global stock supply network ensures we can offer our customers the fastest possible turnaround when delivery times are critical.

Valve & Actuator Range

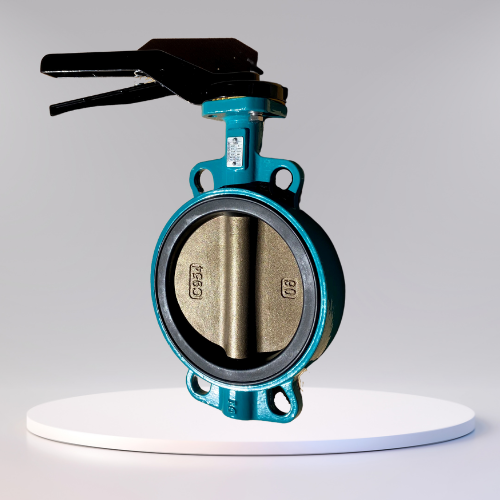

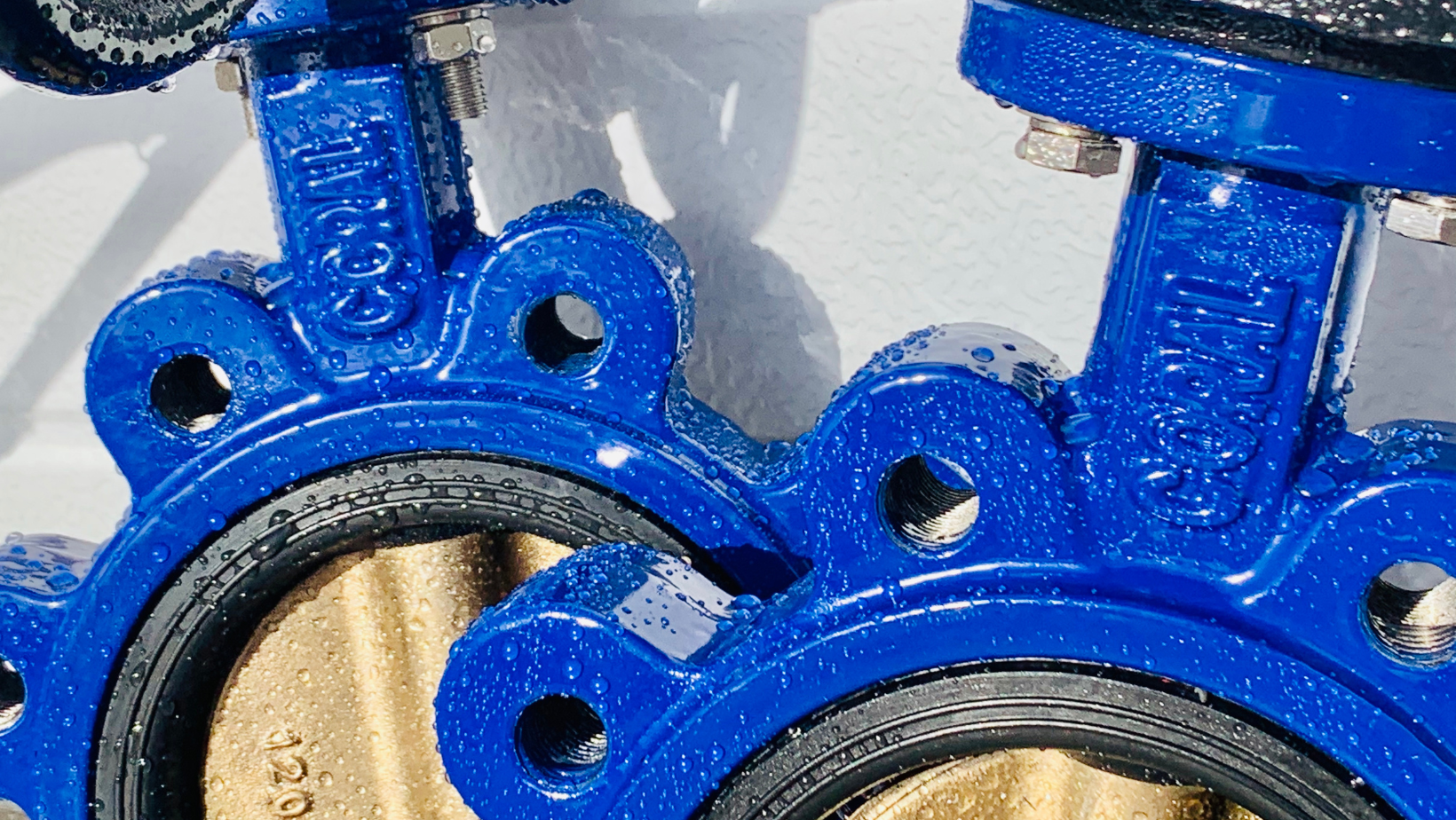

Butterfly Valves

  • Size Range: DN40 - DN1200

    Pressure: PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Configuration: Rubber Lined (Replaceable) EPDM / NBR / Viton

    Construction: Concentric / Double Eccentric

    Materials: Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel / Aluminium Bronze

Gate Valves

  • Size Range: DN40 - DN300

    PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Construction: Bolted Bonnet

    Materials: Cast Iron / Nodular Cast Iron / Carbon Steel / Stainless Steel / Marine Bronze

Globe Valves

  • Size Range: DN15 - DN400

    Pressure: PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Construction: Bolted Bonnet

    Configuration: Stop Type / SDNR Type

    Materials: Cast Iron / Nodular Cast Iron / Carbon Steel / Stainless Steel / Marine Bronze

Angle Valves

  • Size Range: DN15 - DN400

    Pressure: PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Construction: Bolted Bonnet

    Configuration: Stop Type / SDNR Type

    Materials: Cast Iron / Nodular Cast Iron / Carbon Steel / Stainless Steel / Marine Bronze

Check Valves

  • Size Range: DN50 - DN600

    Pressure: PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Configuration: Wafer Double Door / Single Door / Swing Type

    Materials: Cast Iron / Nodular Cast Iron / Aluminium Bronze + NBR

Quick Closing Valves

  • Size Range: DN15 - DN200

    Pressure: PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Construction: Bolted Bonnet

    Configuration: Straight Pattern / Angle Pattern

    Materials: Nodular Cast Iron / Stainless Steel / Marine Bronze

    Operation: Pneumatic / Hydraulic / Wire Rope

Ball Valves

  • Size Range: 1/4" - 12" - Larger sizes available on request

    Pressure: PN16-PN40 / ANSI Class 150 Class 300 / JIS 5K-40K

    End Connections: Flanged / Threaded / Welded

    Materials: Carbon Steel / Low Carbon Steel / Stainless Steel Alloys / Aluminium Bronze

Mudboxes

  • Size Range: DN50 - DN300

    Pressure: PN10 - PN16 / JIS 5K - 10K / ANSI Class 150

    Construction: Floating Ball Type

    Materials: Cast Aluminium / Fabricated Galvanized Steel

Storm Valves

  • Size Range: DN50 - DN200

    Pressure: PN10 - PN16 / JIS 5K - 10K

    Configuration: Straight Pattern / Angle Pattern

    Features: Locking Device

    Materials: Nodular Cast Iron / Cast Steel

    Certification: EN10204 - 3.2 By DNV/GL / LR / BV

Tank Vent Heads

  • Size Range: DN50 - DN400

    Pressure: PN10 - PN16 / JIS 5K - 10K

    Construction: Bolted Cover

    Materials: Cast Iron / Nodular Cast Iron / Marine Bronze

Electric Actuators

  • Torque: 40 N.M - 3000 N.M

    Configuration: Quarter Turn / Multi Turn

    Construction: Hard Anodized Aluminium Body

    Power Supply: 1Ph / 3Ph

    Complete with Manual Override

Accessories

  • Hydrant Valves

    Sounding Cocks

    Level Gauges

    Flanges

    Sight Glasses

    Various Other Accessories

The Coral Valves Commitment.

  • Premium Marine Valves for Maritime Success.

    At Coral Valves, we are committed to supplying top-tier marine valves tailored for the diverse needs of the maritime engineering, fishing, shipbuilding, ship repair, and offshore industries. Our range of marine valves reflects our unwavering dedication to quality. We understand that in these demanding sectors, precision and reliability are non-negotiable. That's why each Coral Valves marine valve is meticulously crafted and rigorously tested to meet stringent industry standards, ensuring they endure the harshest marine environments while optimizing safety and performance

  • Supporting Your Maritime Journey.

    Our dedication doesn't stop at supply; it extends to robust support throughout your maritime journey. The Coral Valves team is your trusted partner, standing by to assist you at every stage of valve selection, procurement, and integration. Whether you're navigating complex technical requirements or seeking customized solutions, we're here to make the process smooth and efficient. Our commitment transcends the sale, with comprehensive after-sales support that ensures your marine valves continue to function flawlessly, contributing to the efficiency and reliability of your marine operations

  • Your Maritime Partner.

    At Coral Valves, we're not just about valves; we're about building lasting partnerships. Our marine valve range signifies more than just quality hardware; it represents a pledge to craft solutions that perfectly align with your unique needs. We work closely with you to understand the intricacies of your maritime endeavors, ensuring that the valves we provide not only meet industry standards but also enhance the precision and safety of your operations. With Coral Valves, it's about forging maritime partnerships that stand resilient in the face of challenges, and together, we navigate the seas of success
